Explore QuickFlex®
QuickFlex® Quick Change System
The perfect combination: ER collet chuck and quick change system in one Tool Holder.
A change system which offers unique advantages:
- Minimal investment by simply clamping the cutting tool directly in the QuickFlex® Tool Holder using a standard ER collet.
- Maximal expandability by adding the quick change function for reducing tool change time using QuickFlex® adapters.
- Quick and safe tool change with the one-hand wrench ( patent registered)

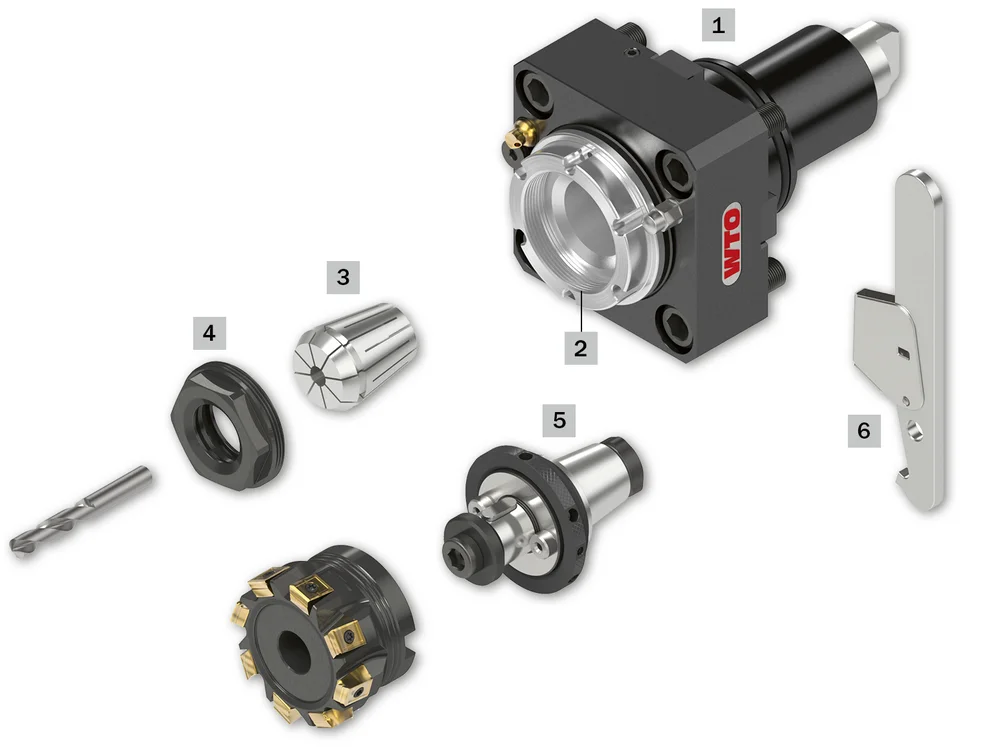

01 Tool Holder
02 QuickFlex® chuck
03 Collet
04 Collet nut
05 QuickFlex® adapter
06 One-hand wrench (patent registered)
07 Thread for QuickFlex® adapter and collet nut

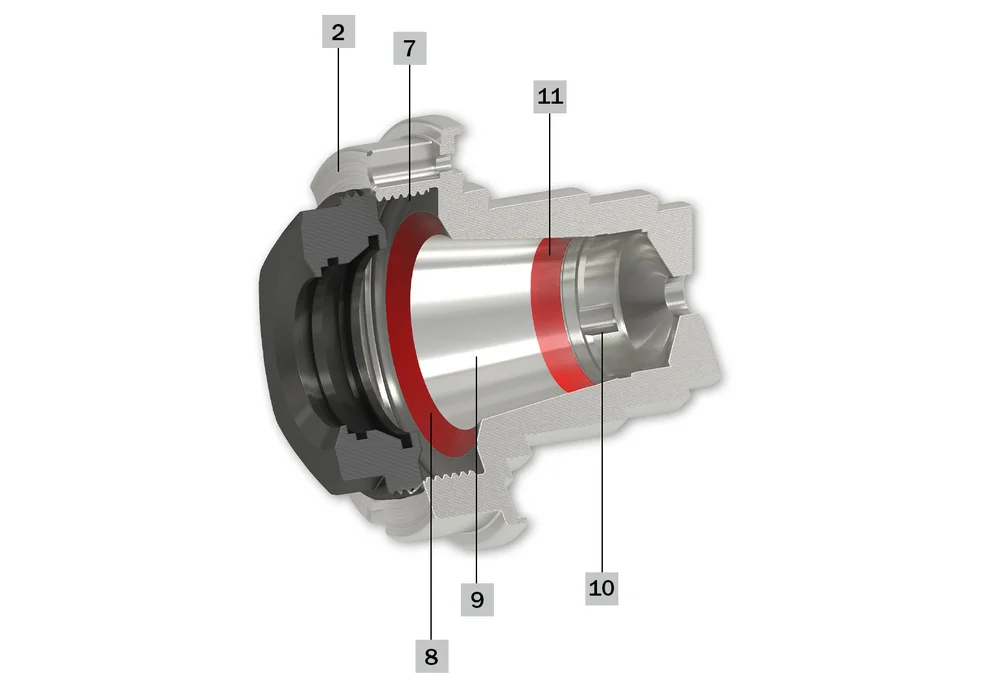

02 QuickFlex® chuck
07 Thread for QuickFlex® adapter and collet nut
08 Short taper for radial centering and axial support of the QuickFlex® adapter
09 Taper of the ER collet chuck
10 Polygonal torque transmission for QuickFlex®adapter
11 Radial bending support of the QuickFlex® adapter for high stiffness under load

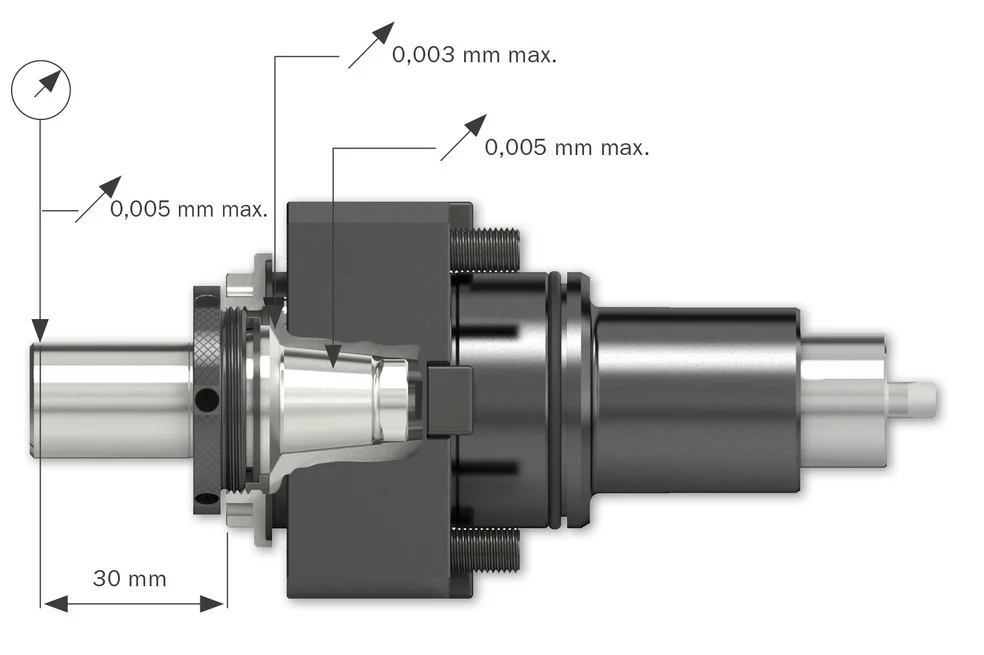

Permanent accuracy of the run-out is guaranteed by two independent taper connections.

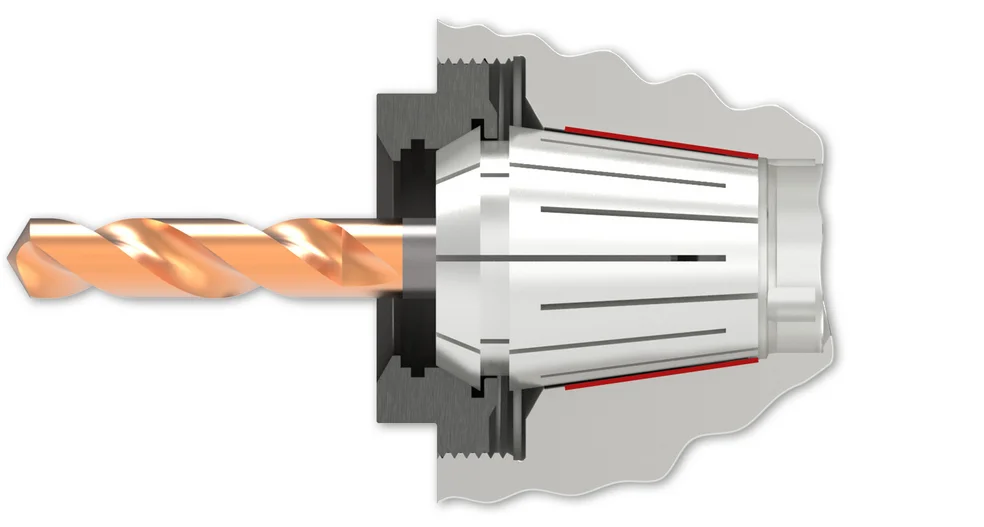

With ER collet

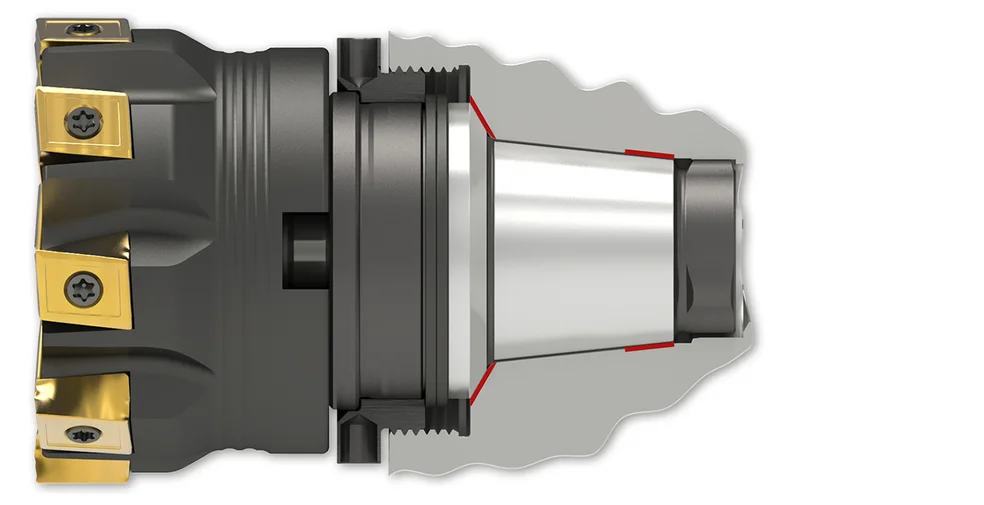

With QuickFlex® mill arbor adapter
The QuickFlex system is engineered to meet the demands of modern machining environments, offering broad compatibility with the industry’s leading standards. Fully compatible with BMT (Built-in Motor Turret) and VDI (Verband Deutscher Ingenieure) interfaces, QuickFlex enables fast and precise tool changes across a wide range of CNC lathes and machining centers.
Whether you work with Mazak, Okuma, DMG Mori, Takisawa, Haas, Doosan, Nakamura, or any other leading CNC equipment, QuickFlex adapts seamlessly to your machine fleet. Its modular architecture ensures repeatable accuracy while significantly reducing setup times.
Trusted by professional machining shops worldwide, the QuickFlex system is the benchmark for maximizing cutting tool productivity on your CNC turning centers.
