Explore CoolSpeed®
Revolutionary patented spindle technology for rotation speed up to 80,000 rpm.
CoolSpeed® is a new, high speed, turbine-driven spindle that costs a fraction of competing spindle systems. It is plug-and-play, crash-resistant, and maintenance-free.
- CoolSpeed® mini
- CoolSpeed® mini Air

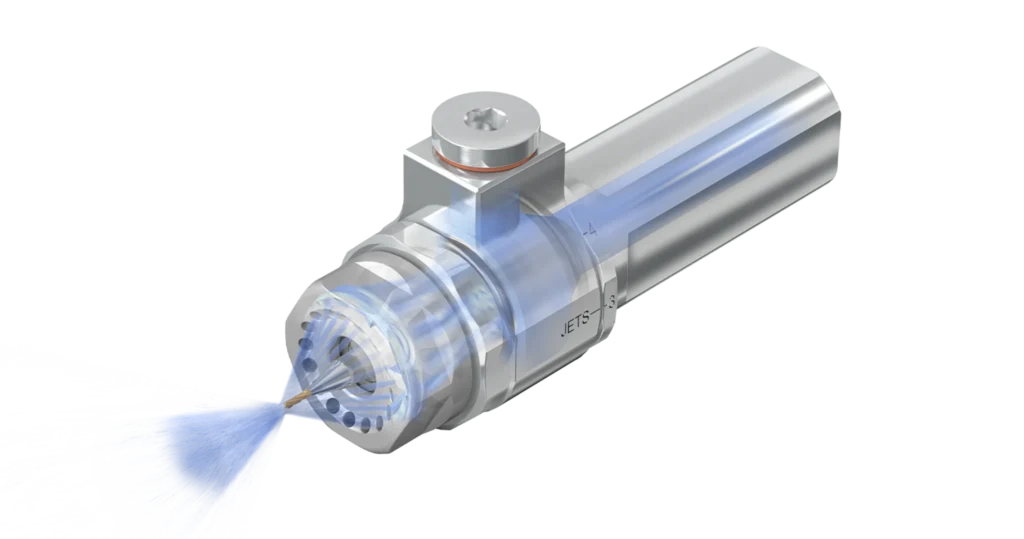

- CoolSpeed® Flex
- CoolSpeed® MAX
 |  |  |  | |
| Driven By | Air Mist | Coolant or Oil | Coolant or Oil | Coolant or Oil |
| Speed Range | 45,000 – 50,000 rpm | 30,000 – 80,000 rpm | 30,000 – 80,000 rpm | 20,000 – 60,000 rpm |
| Pressure Range | 58 – 73 psi | 145 – 870 psi | 145 – 870 psi | 290 – 1015 psi |
| Flow Rate | 36.7 cfm | 6.3 gal/min | 2.0 – 7.5 gal/min | 3.2 – 8.5 (l/min) |
| Max. Power | 300 W | 420 W | 150 – 500 W | 360 – 1100 W |
| Supported Tool Shank | 1/8″, 3/16″, 3 mm, 4 mm, 6 mm | 1/8″, 3/16″, 3 mm, 4 mm, 6 mm | 1/8″, 3/16″, 3 mm, 4 mm, 6 mm | 0.5 – 7.0 mm |
| Available Shaft Ø | 16 mm, 22 mm, 25 mm, 3/4″ | 16 mm, 22 mm, 25 mm, 3/4” | 16 mm, 20 mm, 22 mm, 25 mm, 3/4″ | 20 mm |
| Smart Capatibility | No | Optional Bluetooth Pressure Gauge | Optional Bluetooth Pressure Gauge | Integrated smart Sensor System |
| Milling Center Compatible | Yes | Yes | Yes | Yes |
| Turning Center Compatible | Yes | Yes | Yes | Yes |
| Swiss-type Turning Center Compatible | Limited | Limited | Yes | No |

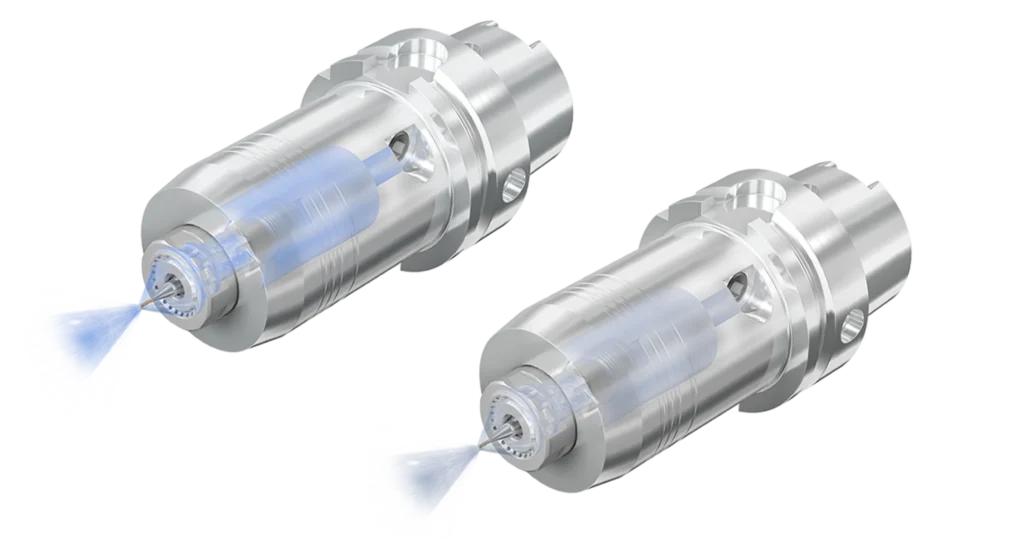

CoolSpeed® mini
CoolSpeed® mini is a revolutionary, patented spindle technology that can reach rotation speed of up to 80,000 rpm. Driven by coolant, cutting oil or air mist – to be used on almost any machine with minimal investment.
Watch in action versus a machine tool spindle and see how CoolSpeed® mini achieves an 87% reduction in machining time, saving time and money!

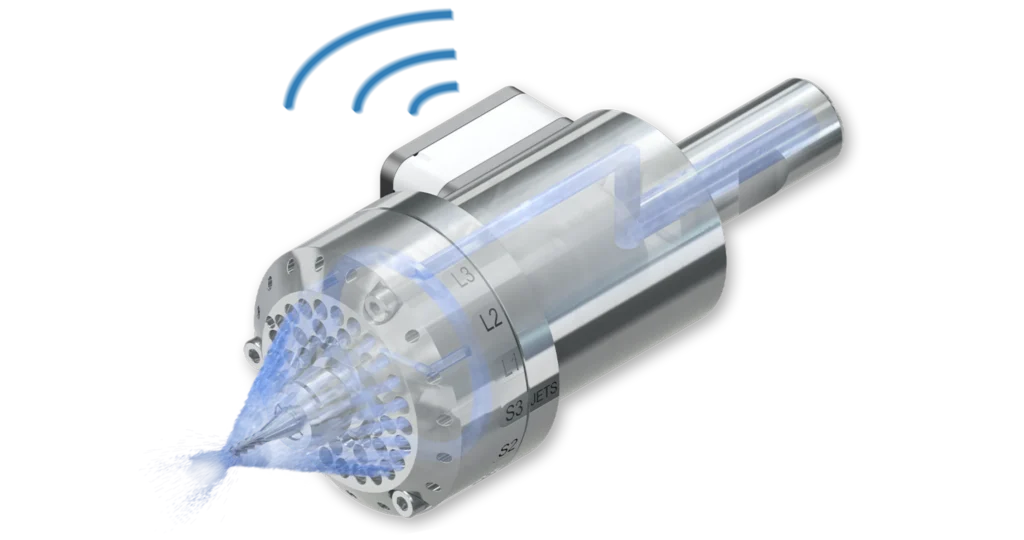

CoolSpeed® MAX
CoolSpeed® MAX is a universally applicable ultra-high-speed spindle, driven by two turbines of different sizes and an adjustable number of jets. With the small turbine, maximum speeds of up to 60,000 rpm can be achieved; with the large turbine, CoolSpeed® MAX provides higher torque in the lower speed range.
Watch in action versus a machine tool spindle and see how CoolSpeed® achieves an 58% reduction in machining time, saving time and money!
